WECO 3206G

01.

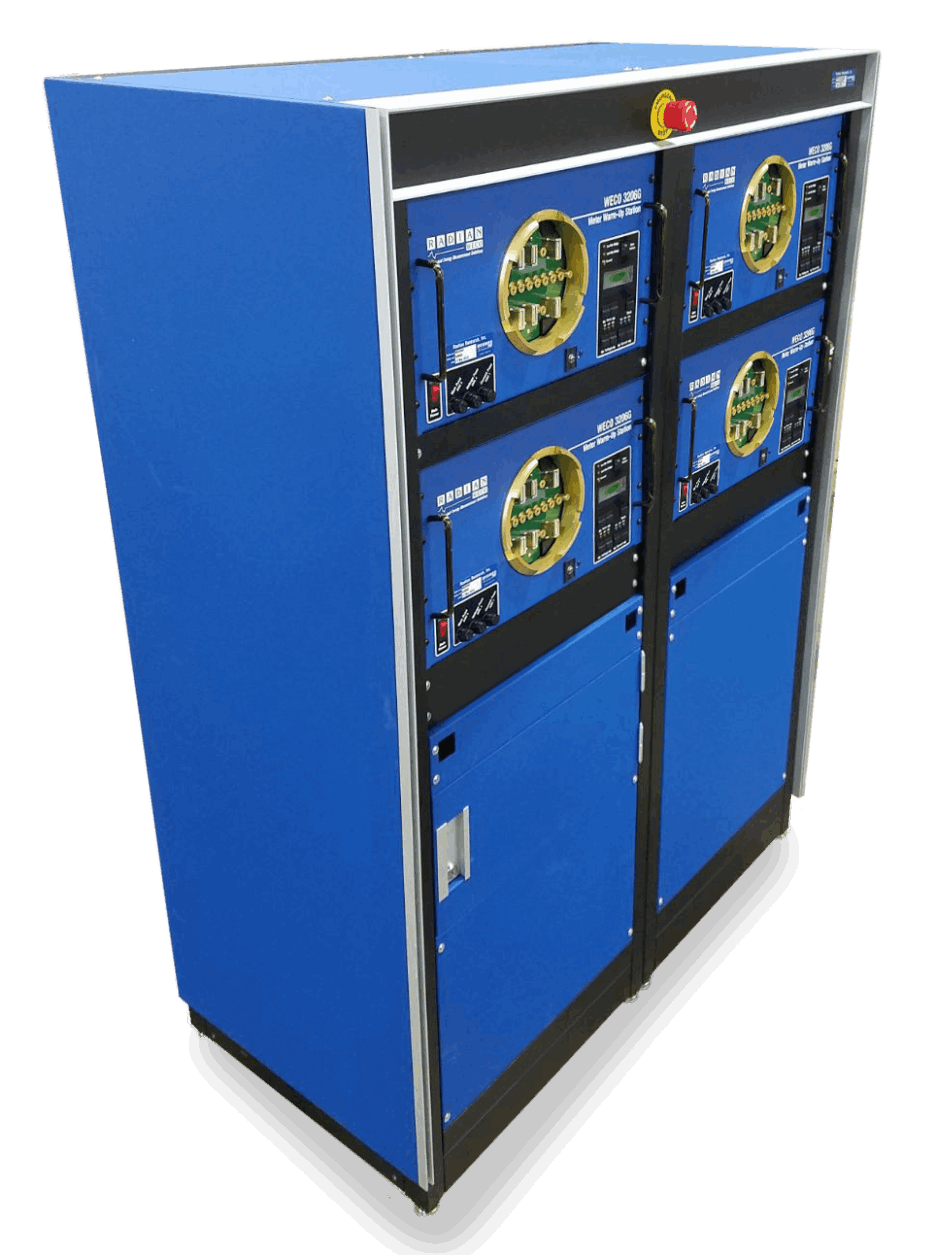

The Model 3206G is a stand-alone unit that requires no additional PC or hardware for general operation. Smart Socket™ technology allows you to insert a meter into the socket with minimal force. Clearly visible LEDs indicate when voltage and current are being generated by the unit. With both Line Side Voltage and Load Side Voltage LED indicators you can determine if the meter disconnect is operating correctly. Each socket in the Model 3206G is a 19” rack mount design, so should a problem arise, a single socket can be removed for service leaving the other sockets operational.

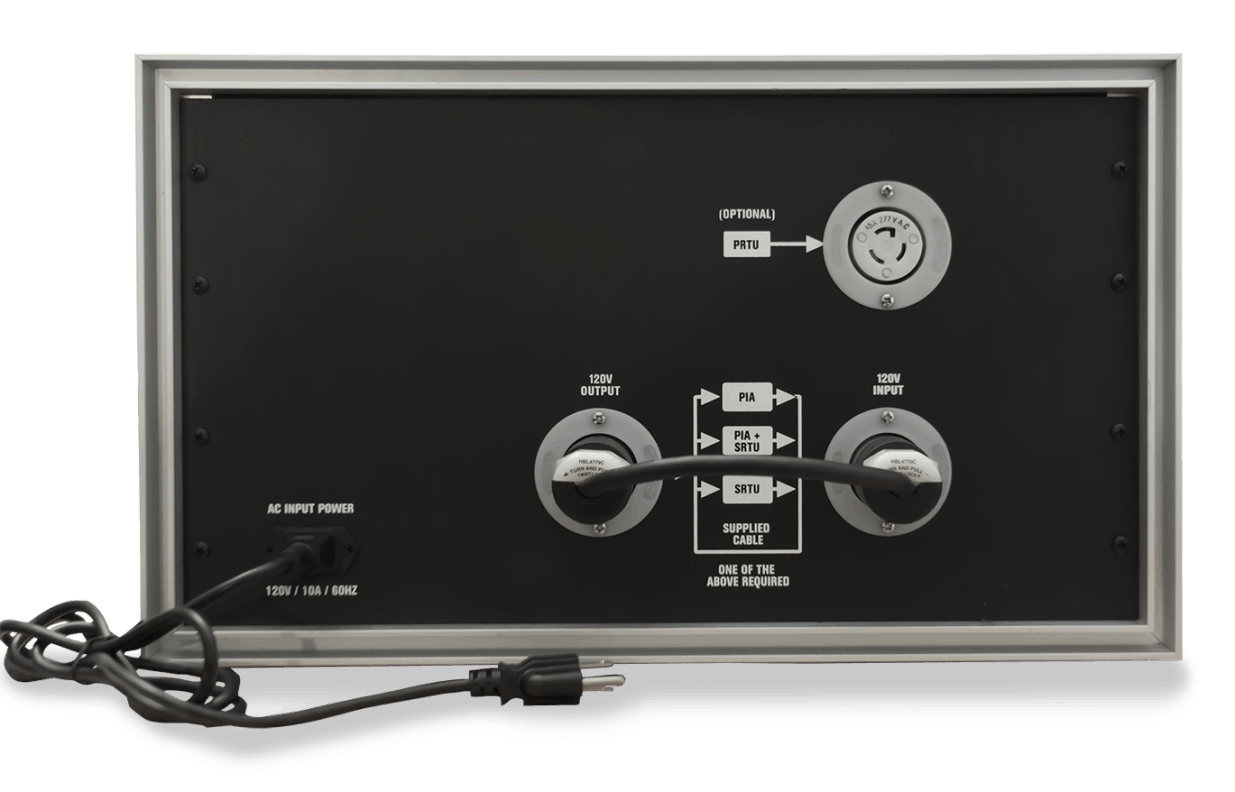

A simple, user-friendly interface makes operation of the unit a snap. Just select a form and base using the scroll selector, select a voltage output for the voltage output connector (0V, 120V, 240V or 480V) and current (0A, 10A, 40A or 50A), and insert a meter into the socket. The Model 3206G does the rest, providing the selected voltage to the output connector and the selected current to the meter’s left element.

To help protect you and your equipment, the Model 3206G’s form selection and voltage selection switch are disabled when a meter is installed in the socket, but the current switch is still active to allow you to step through different current selections. In addition, voltage and current are removed from the meter when it’s removed from the socket.
