EA-100

Energy Analyzer

IEC Compatible

01.

Rugged, Weatherproof, Lightweight and Compact, 6 Channel Energy Analyzer

........................................

OVERVIEW

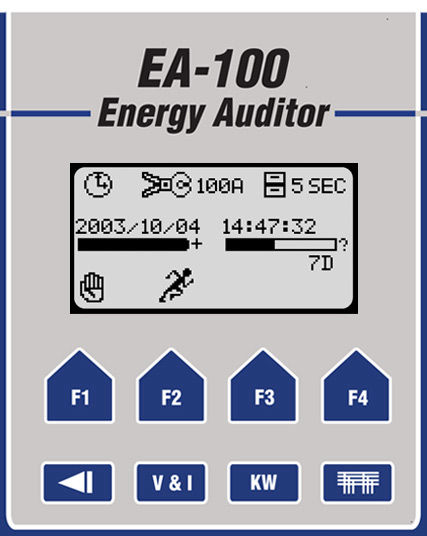

The Energy Analyzer EA-100 is a portable, easy to use Data Recorder. Perfect for single phase or three phase site energy consumption analysis and basic power quality monitoring. The EA-100 supports standard wiring configurations including; 1P2W, 1P3W, 3P3W, 3P4W and 2.5 elements.

PVII Software is supplied with the EA-100 allowing data to be transferred to an external computer for later analysis and record keeping.

EA-100

01.

Features

........................................

01.

Rugged, Weatherproof, Lightweight & Compact – the EA-100 is packaged to be left on-site for continuous monitoring and recording even if power is lost the battery back-up will sustain measurements for at least 24 hours and infinite data storage. The EA-100 weighs in at 5lbs, dimensions 9.25”x7.5”x5” and is water resistant.

Infinite Data Backup – using Flash storage without the need for continuous power.

NIST Traceable Calibration – the EA-100 and associated clamp probes are calibrated using equipment traceable to NIST.

Safety 600V CAT IV – safety is of paramount importance, particularly when applications require measurements undertaken upstream of any fused protection. CAT IV provides the confidence to users that the product has the isolation necessary and is safe to use.

Powerful PVII data analysis software – enables efficient diagnostic evaluation of measurement data that can be analyzed, recorded and communicated to those that need to know.

Customer Site Data Records maintained in WATT-Net Plus™ – don’t know where to keep site data? Transfer PQ information and store within Watt-Net Plus Advanced Data management Software. This functionality is not currently available and is in planning for future Watt-Net Plus development.

RADIAN Technical Support – the same technical support team that you have become familiar with from Radian are available to assist with your customers operational needs, training and technical support.

WECO Meter Farm

01.

Brochure

......................................................
